Catégories
Brides - Raccords- Joints KF - page 1

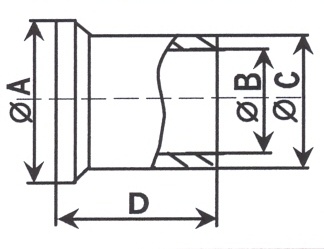

Embout lisse pour diamètre spécial du tube

DN Référence A B C D E
25 149025 40 22.2 25.4 40
40 149040 55 39.2 42.4 40
50 149050 75 56.3 60.3 50
Catégories
Brides - Raccords- Joints KF - page 1

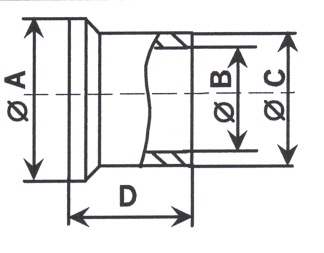

Embout lisse longueur spéciale / flange weld stub different length

304 L

DN Référence A B C D E
16 145016 30 16 20 70
16 145116 30 16 20 110
25 145025 40 24 28 70
40 145040 55 41 45 70
40 145140 55 41 45 90
40 145240 55 41 45 105
50 145050 75 50 57 90
50 145150 75 50 57 70
316 L
DN Référence A B C D E
16 145016-B (316 L) 30 16 20 70
50 145150-B (316 L) 75 50 57 70
Catégories
Brides - Raccords- Joints KF - page 1

Obturateur

304 L
DN Référence A B C D E
10 101010 30 5
16 101016 30 5
20 101020 40 5
25 101025 40 5
32 101032 55 5
40 101040 55 5
50 101050 75 5
316 L
DN Référence A B C D E
10 101010-B (316 L) 30 5
16 101016-B (316 L) 30 5
20 101020-B (316 L) 40 5
25 101025-B (316 L) 40 5
32 101032-B (316 L) 55 5
40 101040-B (316 L) 55 5
50 101050-B (316 L) 75 5
Catégories
Brides - Raccords- Joints KF - page 1

Embout lisse long / long flange weld stub

304 L
DN Référence A B C D E
10 103010 30 10 14 50
16 103016 30 16 20 50
20 103020 40 21 25 50
25 103025 40 24 28 50
32 103032 55 32 38 50
40 103040 55 41 45 50
50 103050 75 50 57 50
316 L
DN Référence A B C D E
16 103016-B (316L) 30 16 20 50
25 103025-B (316L) 40 24 28 50
32 103032-B (316L) 55 32 38 50
40 103040-B (316 L) 55 41 45 50
50 103050-B (316 L) 75 50 57 50
Catégories
Brides - Raccords- Joints KF - page 1

Embout lisse court / short flange weld stub

304 L

DN Référence A B C D E
10 102010 30 10 14 21
16 102016 30 16 20 21
20 102020 40 21 25 21
25 102025 40 24 28 21
32 102032 55 32 38 21
40 102040 55 41 45 21
50 102050 75 50 57 21

316 L

DN Référence A B C D E
10 102010-B (316 L) 30 10 14 21
16 102016-B (316L) 30 16 20 21
25 102025-B (316L) 40 24 28 21
40 102040-B (316 L) 55 41 45 21
50 102050-B (316L) 75 50 57 21
Catégories
Brides - Raccords- Joints KF - page 1

Bride creuse / bored weld flange

DN Référence A B C D E
16 139016 30 5 17.1 16 20.1
25 139025 40 5 26.1 25 28.1
40 139040 55 5 41.1 40 43.1
50 139050 75 5 52.1 50 53.1
